 High Speed SFP+(Small Form-factor Pluggable) Direct Attach Passive Copper Cables , 0.5m to 12m Reach


F9100 Overview

Fiberers F9100 high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.

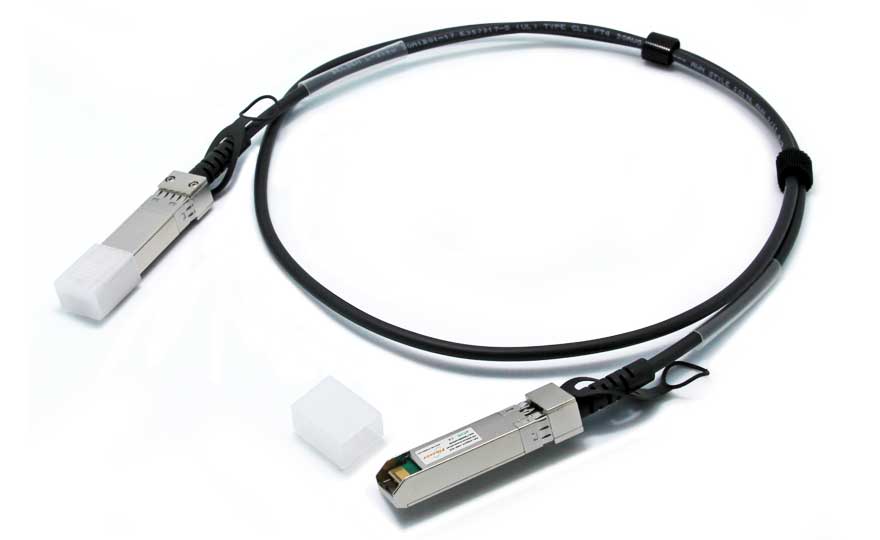

high speed SFP+ Direct Attach Cable (DAC)

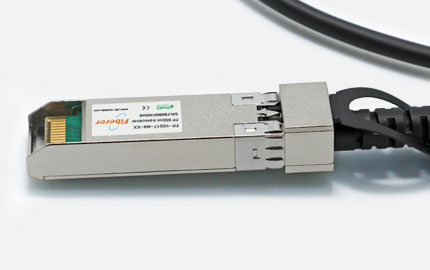

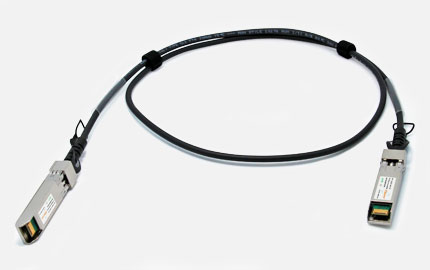

high speed SFP+ Direct Attach Cable (DAC)  high speed SFP+ Direct Attach Cable (DAC)
Product Features - high speed SFP+ Direct Attach Cable (DAC)

Passive Copper (Paddle cards plus Copper cable) (Cable Length: 0.5~12m)
Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Temperature Range: 0~ 70 C
RoHS-6 Compliant

Applications - high speed SFP+ Direct Attach Cable (DAC)

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect



Standard - high speed SFP+ Direct Attach Cable (DAC)

Compliant with electrical standards SFF-8431, SFF-8083
Compliant with mechanical standard SFF-8432
Compliant with EEPROM standard SFF-8472
RoHS Compliant

Description - high speed SFP+ Direct Attach Cable (DAC)

Fiberers F9100 high speed SFP+ Direct Attach Cable assemblies are designed to meet data center,networking and high performance computing application needs for a high density cabling interconnect system capable of 10Gb/s per channel transmission rates. They are designed to be fully compatible in form factor and optical/electrical connections according to meet the requirements of Small Form Factor industry standards.
SFP+ Connectors meet the harshest external operating conditions including temperature, humidity and EMI interference. Final test and quality systems assure high quality cable assemblies conforming to the high-speed electrical performance requirements in industry specifications.
SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget.


Recommended Operating Conditions

Parameter
Symbol
Min
Typical
Max
Unit
Operating Case Temperature
Standard Tc
0
25
70
C
Storage Temperature
Ts
-40

85
C
Relative Humidity
RH
5

95
%
Data Rate


10.5

Fbps

Product Characteristics

Test Type
Test Item
Target
Reference
Electrical Characteristics
Differential Mode RL(SDDII)
0.01<f<4.1 ; < -12+2*SQRT(f )
4. 1<f<11. 1 ; <-6.3+13*log10(f/5.5)
Where f is in GHz
Measurements units: dB
SFF 8431
Common mode return loss (SCCII)
0.01<f<2.5 ; <-7+1.6(f )
2.5<f<11.1 ; <-3
Where f is in GHz
Measurements units: dB
SFF 8431
NEXT
<-26dB from 1MHz to 11GHz
/
Cable assembly Impedence
100+/ -100hm
Rise time of 30 ps (20 %- 80 %)
(20%~80 %)
Insertion Loss Deviation
-1dBILD1dB
300KHzf6GHz
/
Environmental Characteristics

Operating Temperature
-40~85C
Cable operating temp. range
Thermal Shock
Electrical performance meet the specification requirement
EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells
Cyclic Temp. & Humidity
Electrical performance meet the specification requirement
EIA-364-31 Method III,Test Cond A
Salt spray
48 hours salt spraying after shell corrosive area less than 5%
EIA-364-26
Temperature Life
Performance meets the specification requirement
EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours
Mechanical Characteristics

MechanicaI Vibration
Performance meets the specification requirement
EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
Cable Plug Retention in Cage
90N Min.
No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0
Cable Retention in Plug
90N Min.
EIA-455-6B
Mechanical Shock
Performance meets the specification requirement
Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
Cable plug Insertion
18N(Max.)
SFF-8432 Rev 5.0
Cable plug extraction
12.5N(Max.)
SFF-8432 Rev 5.0
Durability
50 Time. No evidence of physical damage
EIA-364-09; perform plug&unplug cycles Plug and Receptacle mate rate: 250times/hour


Mechanical Dimensions - high speed SFP+ Direct Attach Cable (DAC)

high speed SFP+ Direct Attach Cable (DAC)

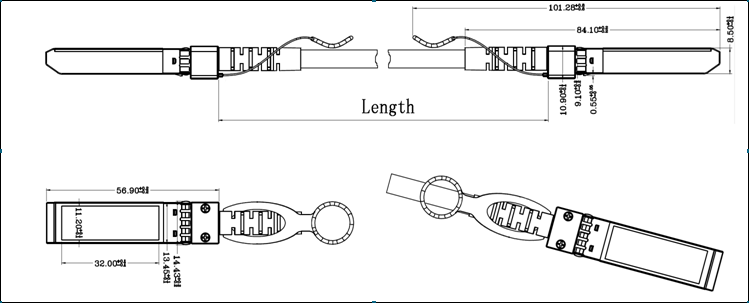

Diagram of Mechanical Dimensions


Ordering Information - high speed SFP+ Direct Attach Cable (DAC)

Part Number
Data Rate
Cable Length
Wire Gauge
Connector Type
Temp. Range
F9100-0.5M
Up to 10.5 Fbps
0.5m
30AWG
Passive Copper
0-70
F9100-1M
Up to 10.5 Fbps
1m
30AWG
Passive Copper
0-70
F9100-2M
Up to 10.5 Fbps
2m
30AWG
Passive Copper
0-70
F9100-3M
Up to 10.5 Fbps
3m
30AWG
Passive Copper
0-70
F9100-4M
Up to 10.5 Fbps
4m
30AWG
Passive Copper
0-70
F9100-5M
Up to 10.5 Fbps
5m
30AWG
Passive Copper
0-70
F9100-5M
Up to 10.5 Fbps
5m
24AWG
Passive Copper
0-70
F9100-7M
Up to 10.5 Fbps
7m
24AWG
Passive Copper
0-70
F9100-9M
Up to 10.5 Fbps
9m
24AWG
Passive Copper
0-70
F9100-10M
Up to 10.5 Fbps
10m
24AWG
Passive Copper
0-70
F9100-12M
Up to 10.5 Fbps
12m
24AWG
Passive Copper
0-70
Standard Copper SFP+ assemblies are offered in different wire gauges (AWG) depending on length. You can be customized diameter and distance.
SFP+ cable assemblies are hot swappable and the programmed EEPROM signature enables the host to differentiate between a copper cable assembly and a fiber optic module.
Low power consumption assists in making the passive copper cable assembly an economic solution for within rack, or rack-to-rack applications.

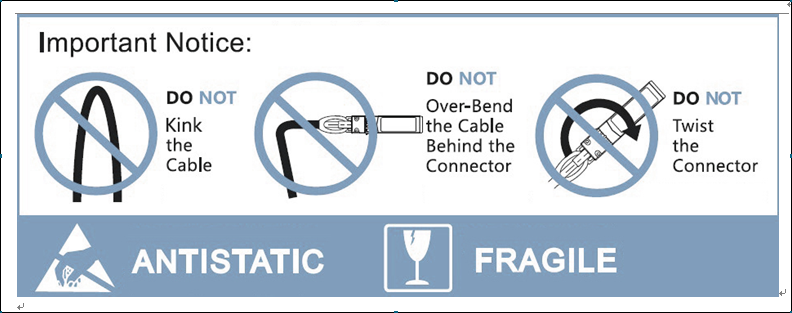

Important Notice

high speed SFP+ Direct Attach Cable (DAC)
 Note:
1) Copper type maximum length recommended at 12 meters;
2) Various cable lengths available for all types;
3) latch/tab available On top or Bottom position.
