Industrial SFP Optical Transceiver

Description

The SFP transceivers are high performance, cost effective modules supporting data-rate of 155Mbps and 120km transmission distance with SMF. The transceiver consists of three sections: a uncooled DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements. The transceivers are compatible with SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features

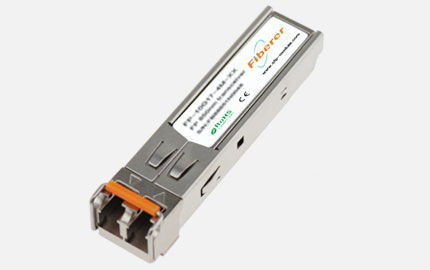

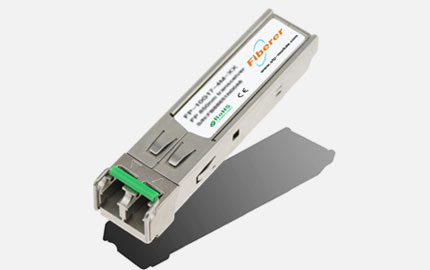

(155Mbps DFB SFP Optical Transceiver, 120km Reach FP-5503-12xD)

▪ Data-rate of 155Mbps operation

▪ DFB 1550nm wavelengths laser and PIN photo detector for 120km transmission

▪ Compliant with SFP MSA and SFF-8472 with duplex LC receptacle

▪ Digital Diagnostic Monitoring: Internal Calibration or External Calibration

▪ Compatible with RoHS

▪ +3.3V single power supply

▪ Operating case temperature: Standard: 0 to +70°C

  Industrial : -40 to +85°C

Applications

▪ Gigabit Ethernet

▪ Fiber Channel

▪ Switch to Switch interface

▪ Switched backplane applications

▪ Router/Server interface

▪ Other optical transmission systems

Ordering information

Datasheet Download	Data Rate	Distance	LD	PD	DDMI
FP-1303-02x(D)	155Mbps	2km	1310nm FP(LED)	PIN	N(Y)
FP-3103-L2x(D)	155Mbps	20km	1310nm FP	PIN	N(Y)
FP-3103-L4x(D)	155Mbps	40km	1310nm FP	PIN	N(Y)
FP-5503-L8x(D)	155Mbps	80km	1550nm DFB	PIN	N(Y)
FP-5503-12x(D)	155Mbps	120km	1550nm DFB	PIN	Y
FP-3112-L2x(D)	622Mbps	20km	1310nm FP	PIN	N(Y)
FP-3112-L4x(D)	622Mbps	40km	1310nm DFB	PIN	N(Y)
FP-5512-L8x(D)	622Mbps	80km	1310nm DFB	PIN	N(Y)
FP-3124-L2x(D)	1.25Gbps	20km	1310nm FP	PIN	N(Y)
FP-3124-L4x(D)	1.25Gbps	40km	1310nm DFB	PIN	N(Y)
FP-5524-L8x(D)	1.25Gbps	80km	1550nm DFB	PIN	N(Y)
FP-312F-L1x(D)	2.125Gbps	10km	1310nm FP	PIN	N(Y)
FP-312F-L2x(D)	2.125Gbps	20km	1310nm DFB	PIN	N(Y)
FP-5548-L4x(D)	2.488Gbps	40km	1550nm DFB	PIN	N(Y)
FP-8548-S3x(D)	2.488Gbps	300m	850nm VCSEL	PIN	N(Y)
FP-3148-02x(D)	2.488Gbps	2km	1310nm FP	PIN	N(Y)
FP-3148-L2x(D)	2.488Gbps	20km	1310nm DFB	PIN	N(Y)
FP-5548-L2x(D)	2.488Gbps	20km	1550nm DFB	PIN	N(Y)
FP-314G-L1x(D)	4.25Gbps	10km	1310nm DFB	PIN	Y
FP-314G-L3x(D)	4.25Gbps	30km	1310nm DFB	PIN	Y
FP-554G-L4x(D)	4.25Gbps	40km	1550nm DFB	PIN	Y
